Modify an Existing Terminal
Adjust thread, panel fit, cable access, insulation, finish, or packaging based on an existing binding post or terminal part.
RFQ Checks
Existing sample Dimension changes Finish requirement Assembly fit
OEM review visual - exact construction confirmed per drawing and sample approval
Custom Terminal Evidence Images
Visual Proof a Custom Terminal Page Can Show
These evidence images show the review mix for drawing-based terminal components: existing part, material route, machining, inspection, and release package.
Drawing / Sample Basis
Shows drawings, samples, marked-up dimensions, inspection records, and interface notes.

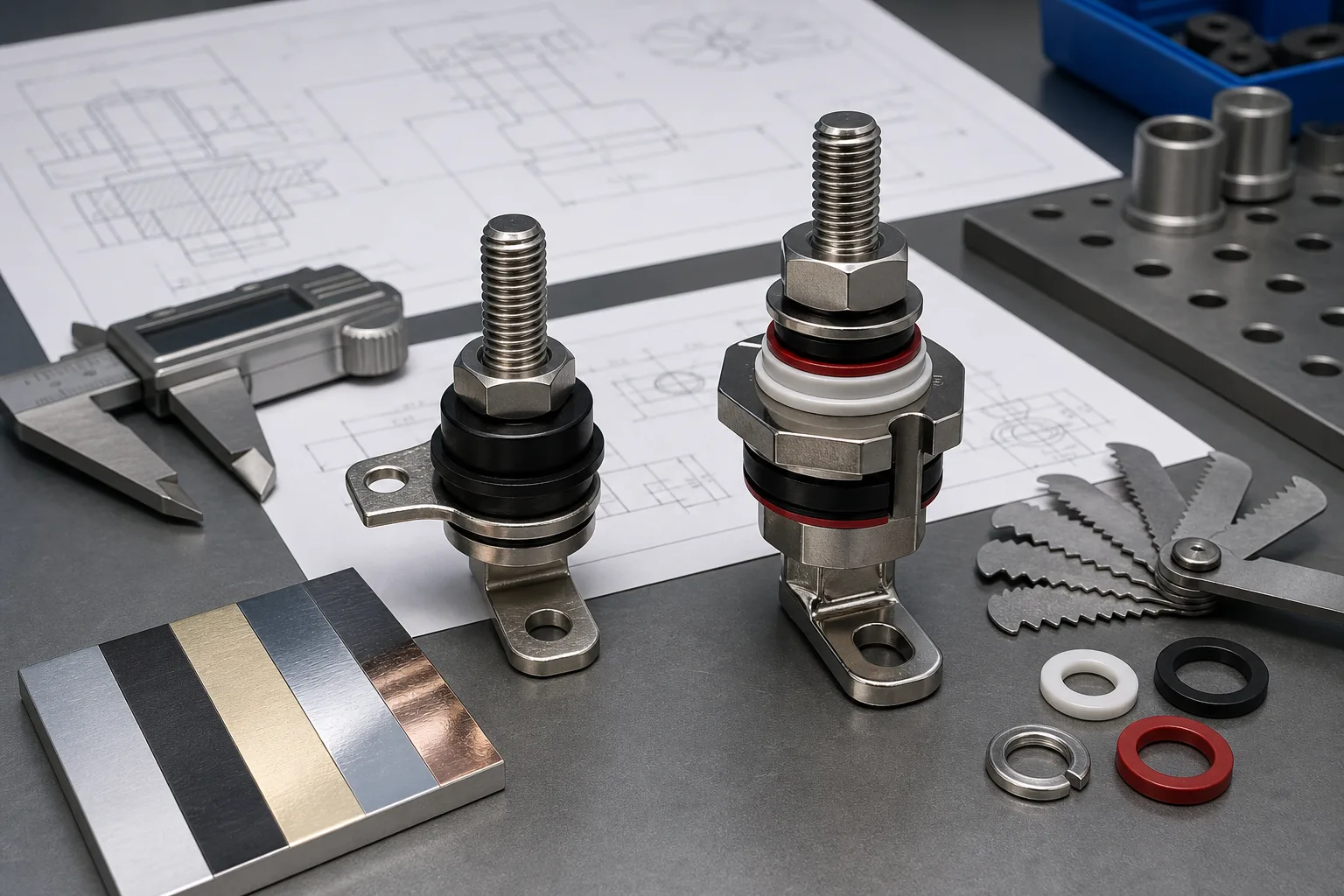

Modification Review
Shows existing and modified terminal geometry, finish samples, insulation stack, and dimension checks.
Supplier Replacement
Shows approved sample comparison, finish coupons, inspection tools, and repeat-order packing context.

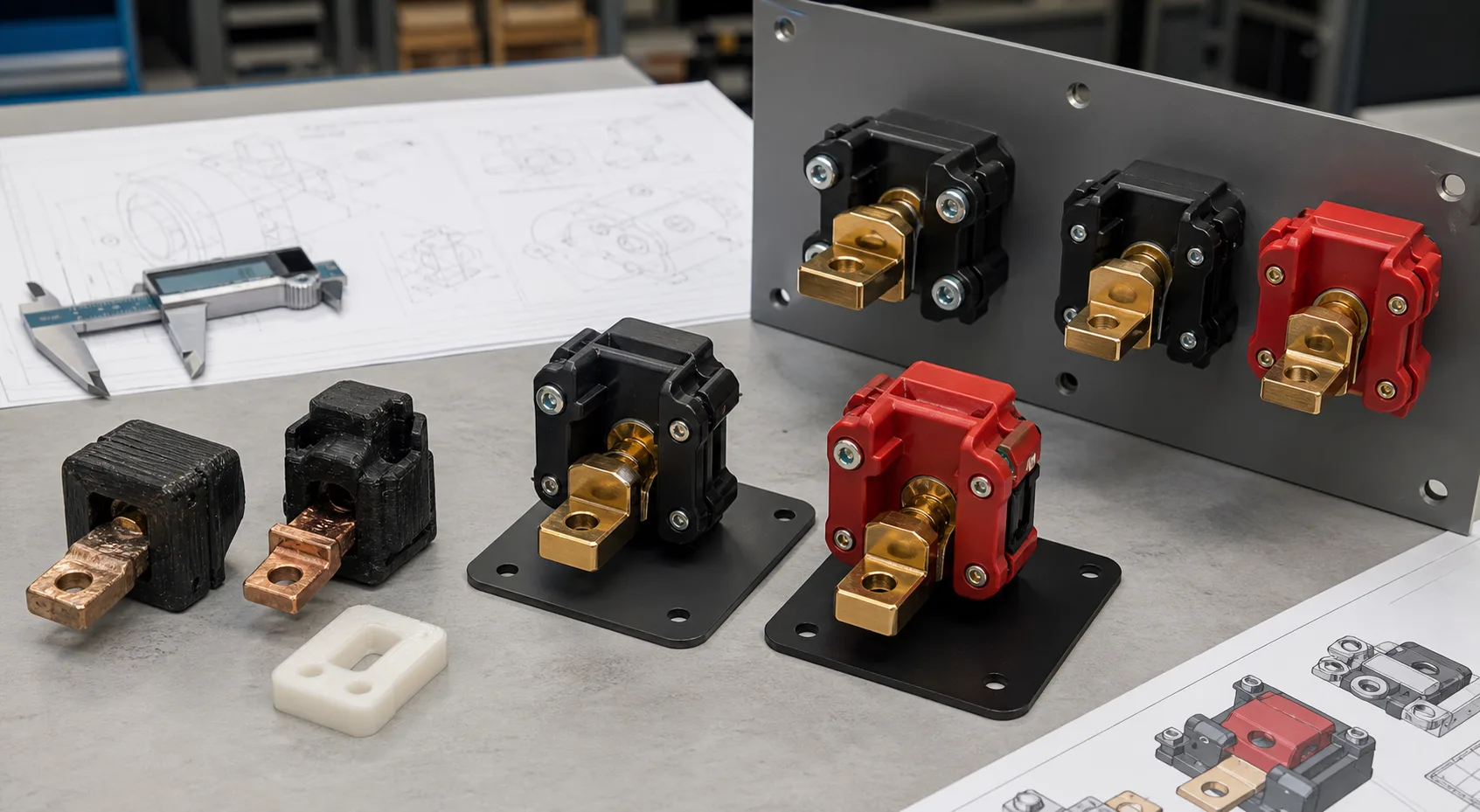

OEM Development
Shows prototype iteration, panel interface, insulation parts, cable lug contact, and CAD review context.
Brass / Copper Route
Shows machined brass bodies, copper contact parts, threaded hardware, finish samples, and inspection tools.
Project Type
What Type of Custom Project Is This?
Start from the sourcing situation first, then move into material, finish, insulation, assembly, and quotation details.
Replace a Supplier Part
Review a current approved sample or reference part to support supplier replacement, repeat ordering, and production control.
RFQ Checks
Reference sample Critical dimensions Approval standard Repeat demand
New OEM Terminal Development
Develop a terminal component or assembled interface from equipment requirements, drawings, or early-stage design inputs.
RFQ Checks
Equipment interface Material route Sample path Validation needs
Drawing-Based Brass / Copper Parts
Manufacture brass or copper terminal bodies, conductive components, threaded hardware, and connector parts from drawings.
RFQ Checks
2D / 3D drawing Material grade Surface finish Inspection points
Decision Matrix
When Should a Project Use the Custom Route?
Custom terminal projects are not all the same. The right RFQ path depends on whether the buyer is modifying, replacing, developing, or validating a material-driven component.
Situation
You have a standard-style terminal but the fit is wrong
Modify an Existing Terminal
Send the current sample, panel layout, mating cable method, and the dimensions that need to change.
Situation
You need to replace a current supplier part
Replace a Supplier Part
Send the approved sample, known critical dimensions, packaging requirement, and repeat-order demand.
Situation
The terminal is part of a new equipment design
New OEM Terminal Development
Send the equipment interface, rough drawing, material assumptions, validation plan, and target launch timing.
Situation
The project is defined mainly by material or conductivity
Brass / Copper Component Review
Send material grade, current path or thread function, finish zones, and inspection requirements.
Manufacturing Path
Choose the Material or Development Route
Use these paths when the project is already defined by material, conductivity, or OEM development scope.
Custom Brass Components
Threaded terminal bodies, collars, nuts, connector hardware, and turned brass parts manufactured from drawings or samples.
Review Scope ->Custom Copper Components
Conductive copper terminal parts, contact bodies, and custom current-path components reviewed around geometry and finish requirements.
Review Scope ->OEM Terminal Development
New or modified terminal assemblies with insulation, finish, logo, packaging, and sample approval requirements defined per project.
Review Scope ->RFQ Review
What Controls a Custom Component Quote
Axiterm confirms feasibility, route, MOQ, lead time, and quality controls after reviewing the drawing, sample, application, and quantity range.
- Drawing revision, sample, or reference part
- Material, finish, plating, and contact zones
- Thread, mounting, panel, or cable interface
- Insulation geometry and assembly sequence
- Quantity range, MOQ, sample path, and lead-time assumptions
- Inspection points, packaging, private label, or validation needs
Production Control
How a Custom Part Becomes Repeatable
A custom terminal component is ready for repeat production only when the project has a clear approval basis and change-control record.
Sample basis
Prototype, reference sample, first-article approval, or approved drawing
Change control
Drawing revision, sample revision, finish change, packaging update, or replacement-supplier note
Repeat order control
Inspection points, accepted defects, packaging method, labels, and private-label requirements
RFQ Specification Checklist
Details to Confirm Before Quoting
These practical inputs help engineering and purchasing teams turn a product idea, sample, or drawing into a useful quotation and repeatable production reference.
Part Definition
Drawing basis
2D drawing, 3D model, sample, or dimensioned sketch
Interface
Panel thickness, thread, mating plug, cable, or mounting method
Critical points
Dimensions, contact zones, insulation fit, assembly access, and revision reference
Material and Finish
Metal parts
Brass, copper, steel, or material per drawing
Insulation
Nylon, plastic, color-coded parts, or custom molded geometry
Surface finish
Gold, nickel, tin, rhodium, or custom finish reviewed per requirement
Contact zones
Visible, functional, masked, or protected areas identified before approval
Production Control
Samples
Prototype or first-article approval path after technical review
Inspection
Project-specific dimensional, appearance, fit, and functional checks
Packaging
Bulk, separated parts, assembled sets, labels, or private label scope
Repeat orders
Approved drawing, sample, or acceptance criteria used as the production reference
Commercial Inputs
Quantity range
Prototype, trial batch, annual demand, or repeat program expectation
Lead time
Sample timing and production timing confirmed after process review
Risk notes
NDA, replacement supplier, validation schedule, or compliance needs
Custom Component Evidence
Proof Buyers Should Validate Before Approval
Drawing-based terminal components should be supported by evidence for the drawing basis, machining or molding route, material and finish decisions, inspection points, and release controls.
Factory and Process Media
CNC turning, copper or brass machining, insulation parts, plating preparation, assembly, and packing photos or short videos.
Inspection Records
Thread gauges, dimensional checks, appearance zones, fit checks, first-article notes, and project-specific QC sheets.
Material and Finish Proof
Material grade confirmation, plating requirement, visible and contact zones, sample approval reference, and finish acceptance criteria.
Project and Shipment Evidence
Approved sample records, revision history, packaging instruction, label scope, export packing, and repeat-order control notes.
Evidence Media
Factory, Inspection, Project, and Shipment Proof Points
Buyers should see how product claims connect to the workshop, inspection table, RFQ file, and repeat-order controls.
Modification Basis
Existing sample, changed dimensions, finish options, insulation stack, and assembly fit.
Replacement Review
Approved sample comparison, critical dimensions, thread checks, finish match, and packing control.
OEM Development
Equipment interface, prototype path, insulation design, cable lug contact, and validation planning.
Material / Finish Route
Brass and copper parts, threaded features, machined contact zones, surface finish, and inspection scope.
Drawing and Specification Package
What Turns a Quote Into a Production Reference
RFQ quality improves when engineering, purchasing, and quality teams agree on the same drawing, inspection, and approval basis before samples move into production.
2D / 3D Definition
Drawing, STEP/IGES model, sample photo, mating part, panel layout, or dimensioned sketch used as the review basis.
Material and Finish Schedule
Metal grade, insulation material, plating route, visible zones, contact zones, color requirements, and compliance notes.
Inspection Checklist
Critical dimensions, thread fit, contact surface, insulation fit, assembly sequence, appearance standard, and packaging check.
Approval Record
Sample approval, revision reference, change-control note, packaging instruction, and repeat-order acceptance criteria.
Send a Drawing-Based RFQ
Upload a drawing or sample evidence and describe the application, material, finish, quantity, and validation needs.
